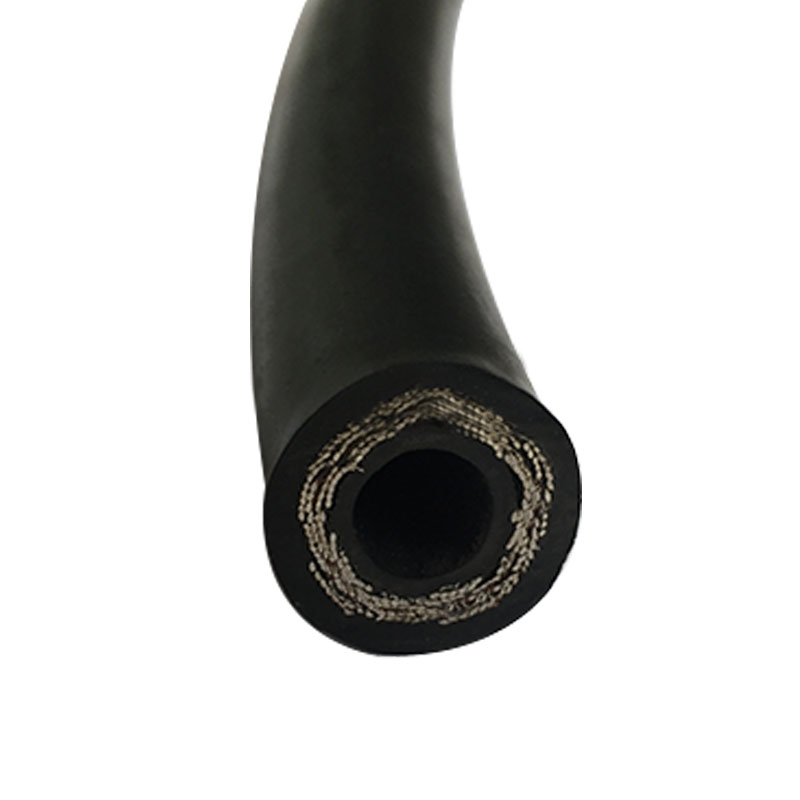

SAE 100R19 Compact High Pressure Rubber Hose

Date of release：2018-03-30

Number of hits：0

Contact telephone ：138-3958-8935

Share： Reproduction More

Description: consultations; Mobile phone sweep

Applications: It is suitable for petroleum base hydraulic oil with temperature range from -40°C to 100°C (-40°F~+212°F).

Features: It is composed of one internal oilproof synthetic rubber layer or two appropriate fiber layers, and one external oilproof and weatherproof synthetic rubber layer.

產品型號 TYPE	公制規格	英制規格	軟管內徑 I.D		增強層外徑 W.D	軟管外徑 O.D	外膠層厚度 Cover thickness		最大工作壓力 Max.W.P	試驗壓力 P.P	最小爆破壓力 Min.B.P	最小彎曲半徑 Min.B.R	參考重量 W.T
	公制規格	英制規格	軟管內徑 I.D		增強層外徑 W.D	軟管外徑 O.D	外膠層厚度 Cover thickness
	SIZE	SIZE	最小	最大	最大	最大	最小	最大
	mm	inch	Min	Max	Max	Max	Min	Max	MPa	MPa	MPa	mm	kg/m
R19-03	5.0	3/16	4.6	5.4	10.8	12.7	0.8	1.5	28	56	112	45
R19-04	6.3	1/4	6.2	7.0	12.4	14.4	0.8	1.5	28	56	112	50	0.17
R19-05	8.0	5/16	7.7	8.5	14.2	16.3	0.8	1.5	28	56	112	55	0.21
R19-06	10.0	3/8	9.3	10.1	16.0	18.0	0.8	1.5	28	56	112	65	0.25
R19-08	12.5	1/2	12.3	13.5	20.4	22.6	0.8	1.5	28	56	112	90	0.47
R19-10	16.0	5/8	15.5	16.7	25.9	27.5	0.8	1.5	28	56	112	100	0.59
R19-12	19.0	3/4	18.6	19.8	29.7	32.5	0.8	1.5	28	56	112	120	0.78
R19-16	25.0	1	25.0	26.4	37.0	39.4	0.8	1.6	28	56	112	150	1.46
