SAE 100R15 Heavy High Pulse Multiply Wire Braided Rubber Hos

Date of release：2018-03-30

Number of hits：0

Contact telephone ：138-3958-8935

Share： Reproduction More

Description: consultations; Mobile phone sweep

Applications: It is suitable for petroleum base hydraulic oil with temperature range from -40°C to 121°C (-40°F~+250°F).

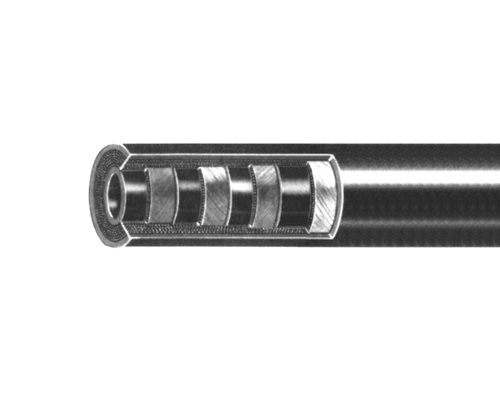

Features: It is composed of one internal oilproof synthetic rubber layer, multiply super wire alternately spirally-wound layers and one external oilproof and weatherproof synthetic rubber layer.

產品型號 TYPE	公制規格	英制規格	軟管內徑 I.D		增強層外徑 W.D	軟管外徑 O.D	最大工作壓力 Max.W.P	試驗壓力 P.P	最小爆破壓力 Min.B.P	最小彎曲半徑 Min.B.R	參考重量 W.T
	公制規格	英制規格	軟管內徑 I.D		增強層外徑 W.D	軟管外徑 O.D
	SIZE	SIZE	最小	最大	最大	最大
	mm	inch	Min	Max	Max	Max	MPa	MPa	MPa	mm	kg/m
R15-06	10	3/8	9.3	10.1	20.3	23.3	42	84	168	150	0.80
R15-08	12.5	1/2	12.3	13.5	24.0	26.8	42	84	168	200	0.55
R15-12	19	3/4	18.6	19.8	32.9	36.1	42	84	168	265	1.85
R15-16	25	1	25.0	26.4	38.9	42.9	42	84	168	330	2.90
R15-20	31.5	1-1/4	31.4	33.0	48.4	51.5	42	84	168	445	4.20
R15-24	38	1-1/2	37.7	39.3	56.3	59.6	42	84	168	530	5.60
